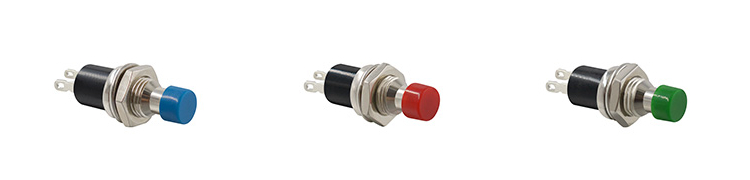

PB05 Pushbutton Switches/  PB05 Series

SAFETY/QUALITY APPROVALS

ROHS

SPECIFICATIONS

Contact Rating: 1A 125VAC  0.5A 250VAC

Mechanical Life: Momentary 100,000 cycles

                           Self-lock 50,000 cycles

Electrical Life: 10,000 cycles make-and-break cycles.

Torque: 3~8Nm

Travel: About 2.0mm

Operation Pressure: About 3N
Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 1000 Vrms @sea level.
Operating Temperature: -20°C to 85°C

MATERIALS

Bushing : PA66/Zinc Alloy

Base : PBT/PA66

Actuator : ABS

Inner Assembly: POM / PA66.

Spring : Spring steel.

Terminal : Brass,with silver or gold plated.

Hex Nut : Zinc Alloy
