The product has stable performance, low contact resistance, strong insulation and vibration resistance.

Meeting EN60947-5-1, GB14048.5 and other standards.(CCC/CE/Rohs)

SAFETY/QUALITY APPROVALS

CCC/CE/ROHS

Specification

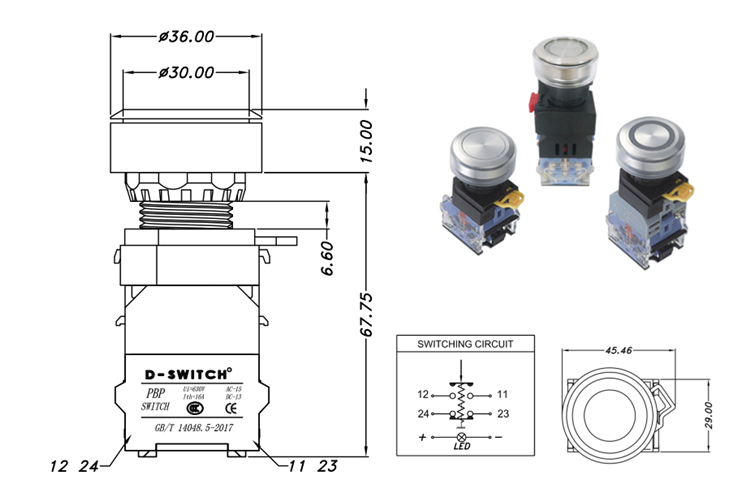

Panel Thickness: Ø22.20mm

Operating Types：Pushbutton Switches

Contact Rating：Uimp/4kV；Ui/630V；Ith/16A；

                            AC-15 Ue/le:AC380V/6A，AC220V/6A，AC110V/6A

                            DC-13:Ue/le:DC220V/0.4A，DC110V/0.8A；

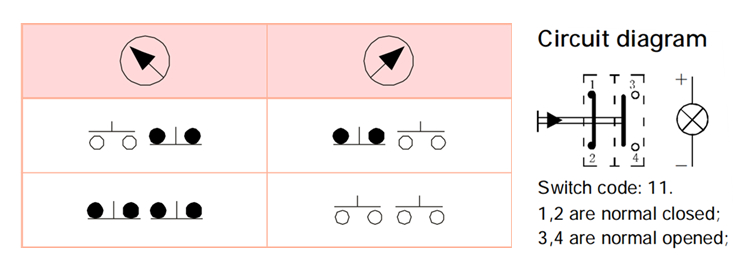

Contact Configuration: 1NO1NC/2NO2NC/3NO3NC/4NO4NC

Operating Temperature ：-25℃ ~ +55℃(no freezing)

                                          keep the air flowing around the illuminated pushbutton

Operating Humidity ：45 ~ 85%RH(no condensation)

Mechanical Life：≥200,000 Cycles

Electrical Life： ≥50,000 Cycles

Contact Resistance ：≤50mΩ

Insulation Resistance：≥100MΩ

Dielectric Strength ：3000 V, AC 50Hz

Vibration Resistance ：50Hz,Amplitude 1.0mmp-p

Shock Resistance ：≥10g

Terminal ：Thread connection, diameter of welded wire: 2×1.5mm maxConnecting link:6.3× 0.8mm

Operating Travel ：about 5.5mm

Operating Force ：800gf~2200gf,according to the quantity of switch units
