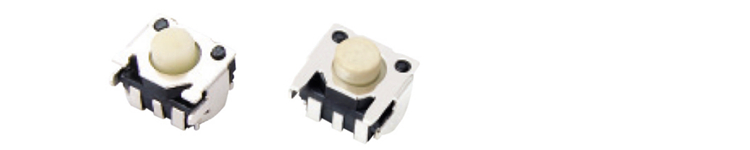

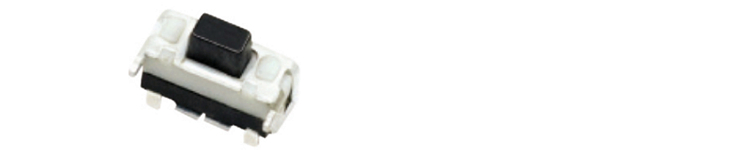

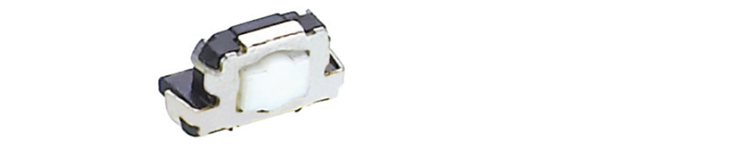

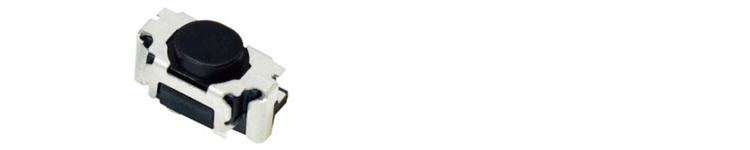

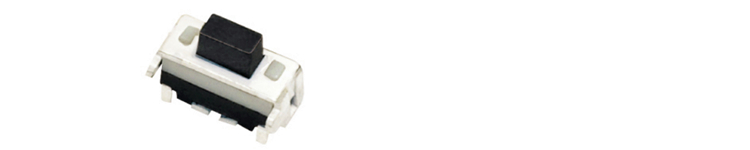

Tact Switches /  THA Series

SAFETY/QUALITY APPROVALS

ROHS

SPECIFICATIONS

Feature： Horizontal Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.

Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices
