24mm Pushbutton Switches/  PBP-24 Series

SAFETY/QUALITY APPROVALS

ROHS

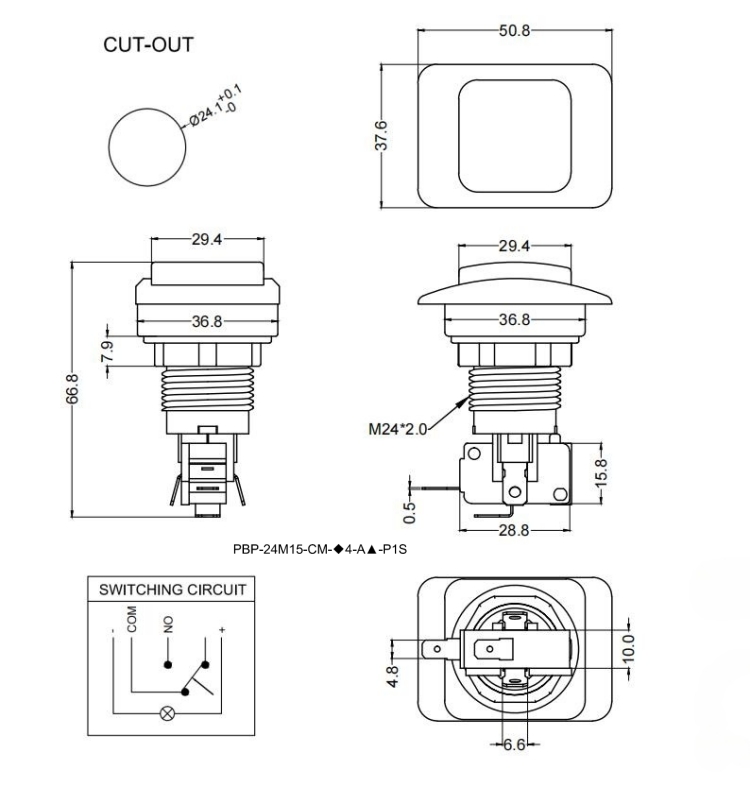

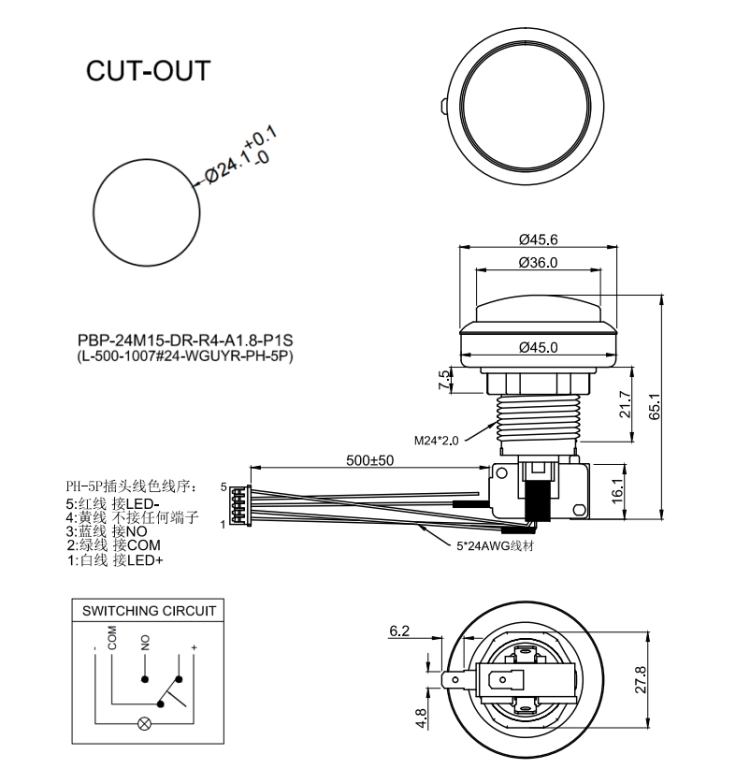

SPECIFICATIONS

Panel Thickness: Ø24.20mm

Contact Rating: 1.5A/250VAC   3A/125VAC   5A 125/250VAC   10A  125/250VAC
Mechanical Life: Momentary 200,000 cycles

                           Self-lock 100,000 cycles

Electrical Life: 50,000 make-and-break cycles at full load

Torque: 5~14Nm

Travel: About 3.0mm

Operation Pressure: 600±100gf
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 1,500 Vrms @sea level.
Operating Temperature: -20°C to 85°C

MATERIALS

BUSHING : PC

BASE : PC

ACTUATOR : PC

INNER ASSEMBLY : POM / PA66.

SPRING : Spring steel.

TERMINAL : Brass,with silver or gold plated.

HEX NUT : PBT

Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V

ILLUMINATION BASE RATlNG：

Red， Yellow and Orange：20mA 1.8V;

Blue, Green and White：20mA 2.8V

Beads Color：R/U/G/Y/0/W
